New MDC XT17HRT Family UT
$83,510.00
Contact Us For Current Price & Availibility
Exterior
Interior
Exterior
Interior
Features
Gallery
Specifications
Measurements
DIMENSIONS
♦ 23’2” L x 7’7” W x 10’3” H
♦ With Annex Room – 23’2” L x 14’5” W x 10’3” H
WEIGHTS
♦ Dry Weight - 6,085 lbs
♦ Tongue Weight - 595 lbs
♦ GVWR - 7,716 lbs
Layout
♦ Sleeps 5

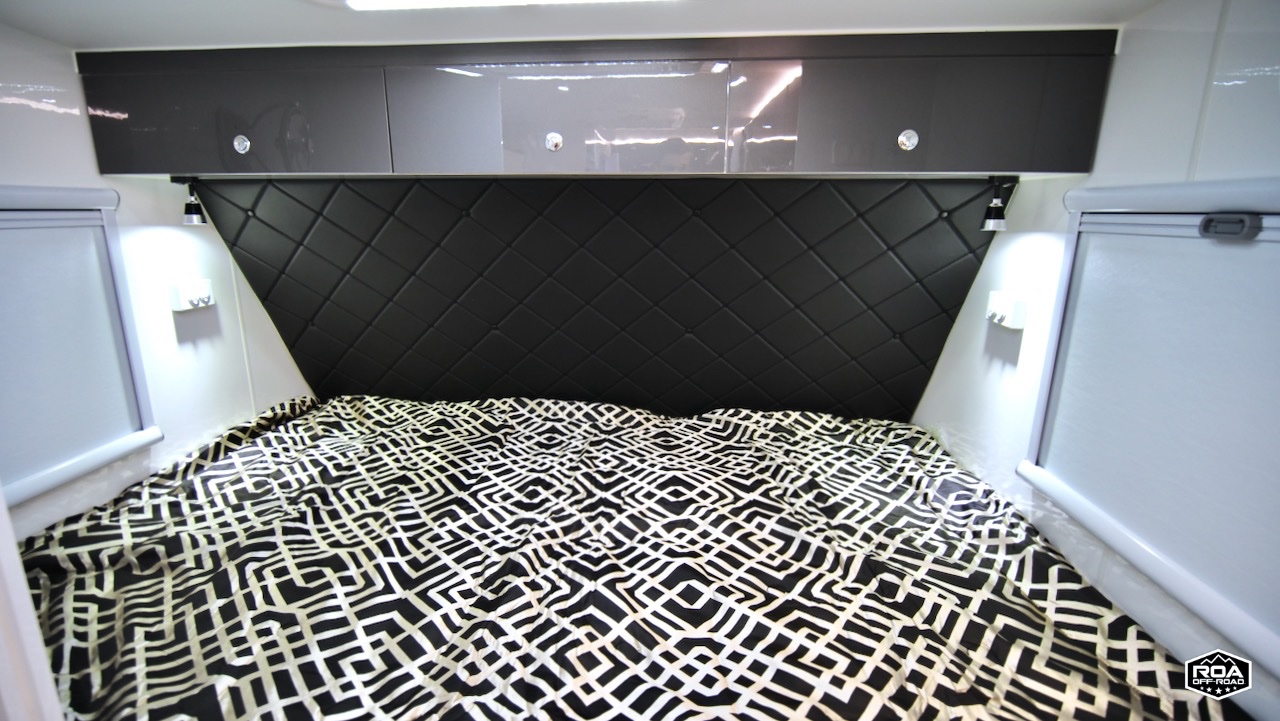

♦ 1 x custom pillow-top olympic queen size innerspring mattress

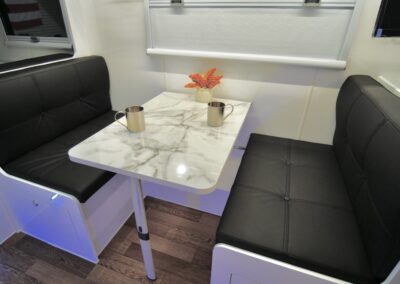

♦ 2 x twin foam bunks and a convertible dinette
♦ Mattress – 83½” L x 60¼” W x 7″ H
♦ Top Bunk – 70¾” L x 24¾”mm W x 4″ H
♦ Bottom Bunk – 69¼” L x 26¼” W x 4″H
INTERIOR

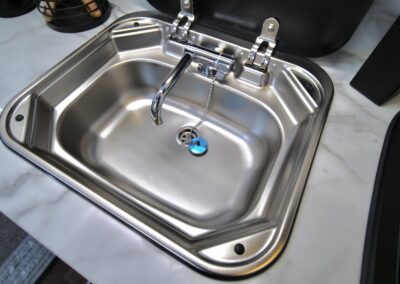

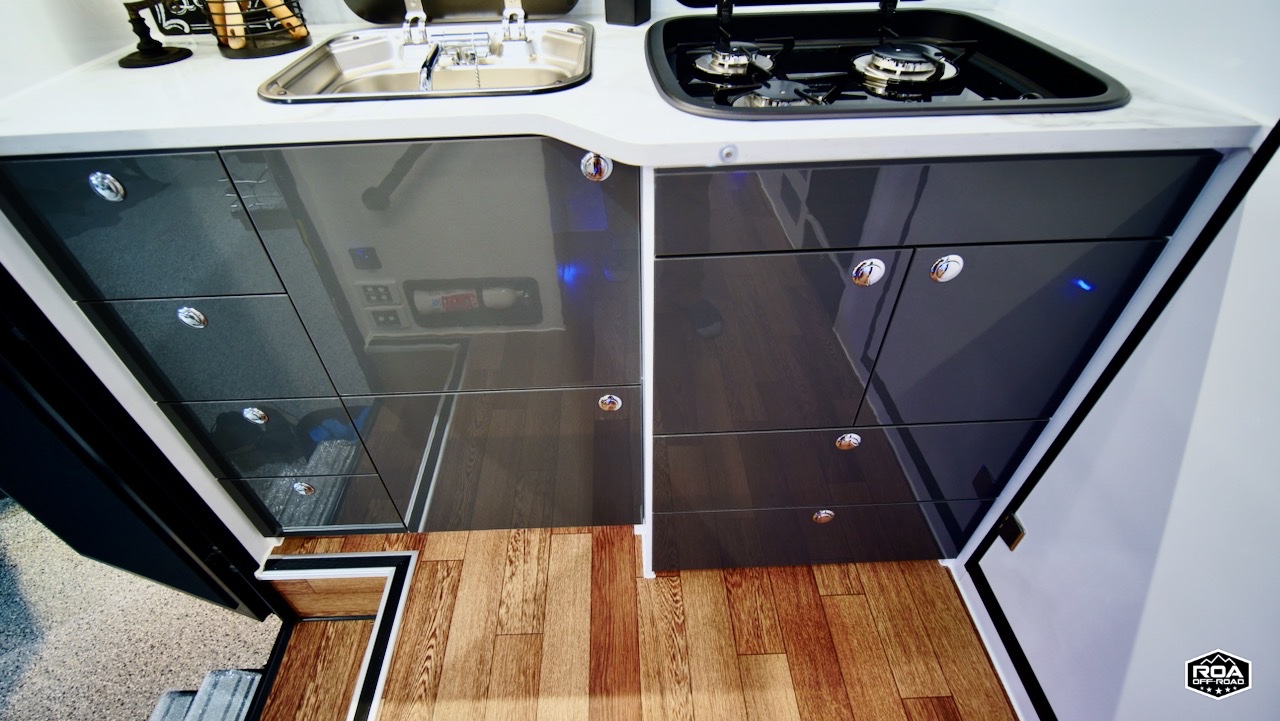

♦ Internal Laminated benchtop with glass lid plumbed sink and gas hob cooktop and internal refrigerator

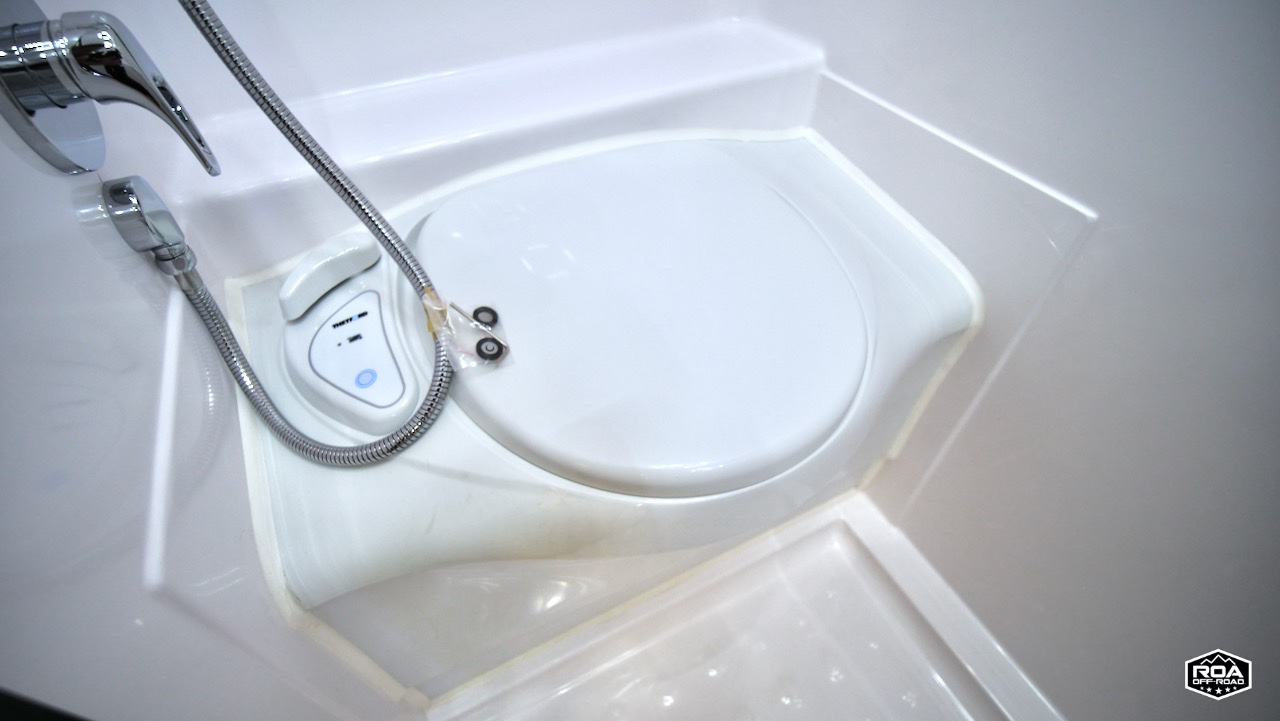

♦ Thetford C400 Cassette toilet
♦ Hot & cold plumbed wet bath
EXTERIOR
♦ 14.3′ 12V electric cassette awning

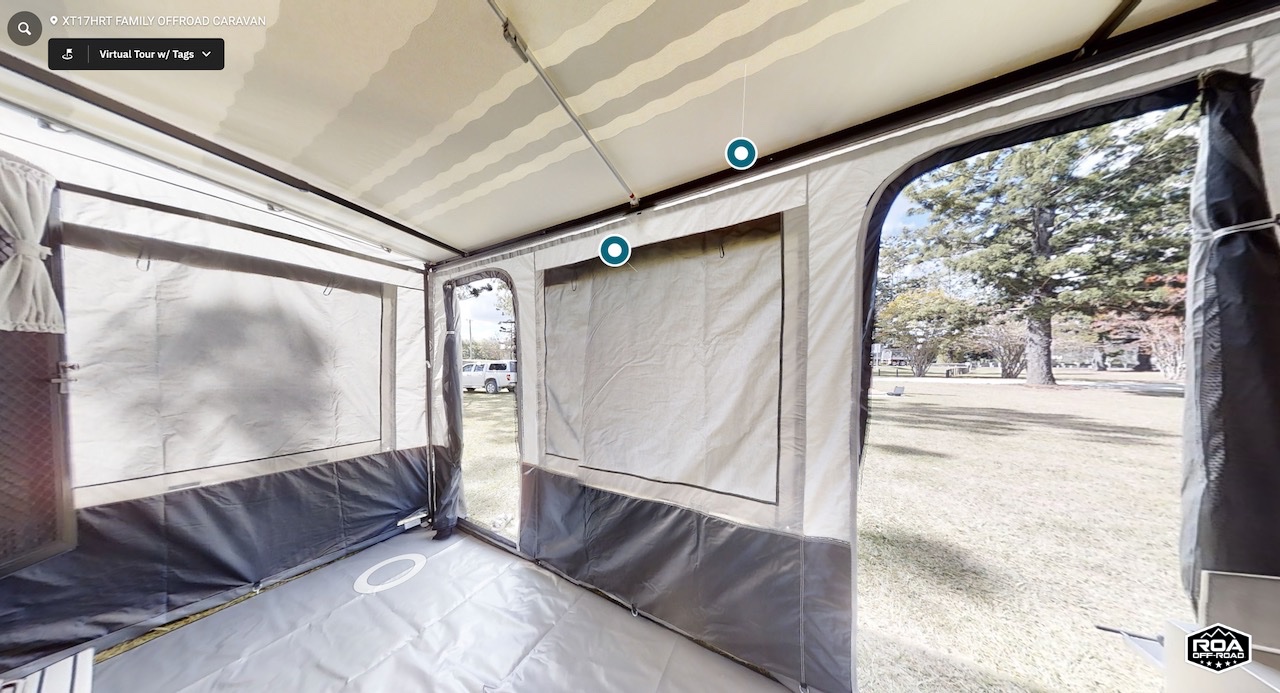

♦ Full annex, enclosed roof, walls, floor and draft skirt
♦ 2 x 20lbs propane cylinder and cylinder holders
♦ 2 x 5 gallon jerry can holders
♦ 2 x 21 gal freshwater tank & 1 x 21 gal gray water tank
♦ Water delivery – 12V electric marine diaphragm pump
♦ 4 Seasons Ready Cold Weather Package includes tank heating pads, HWS electric anti-freeze kit, LiFePRO+® integrated heating and insulated water lines

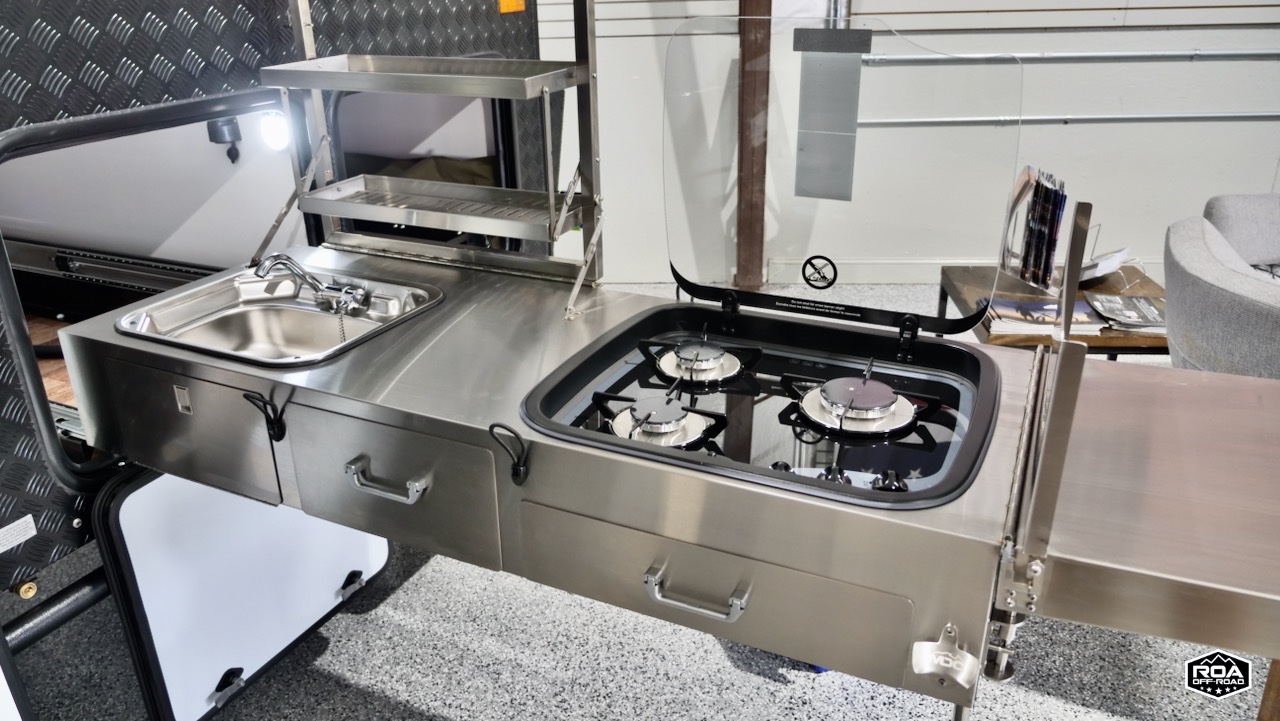

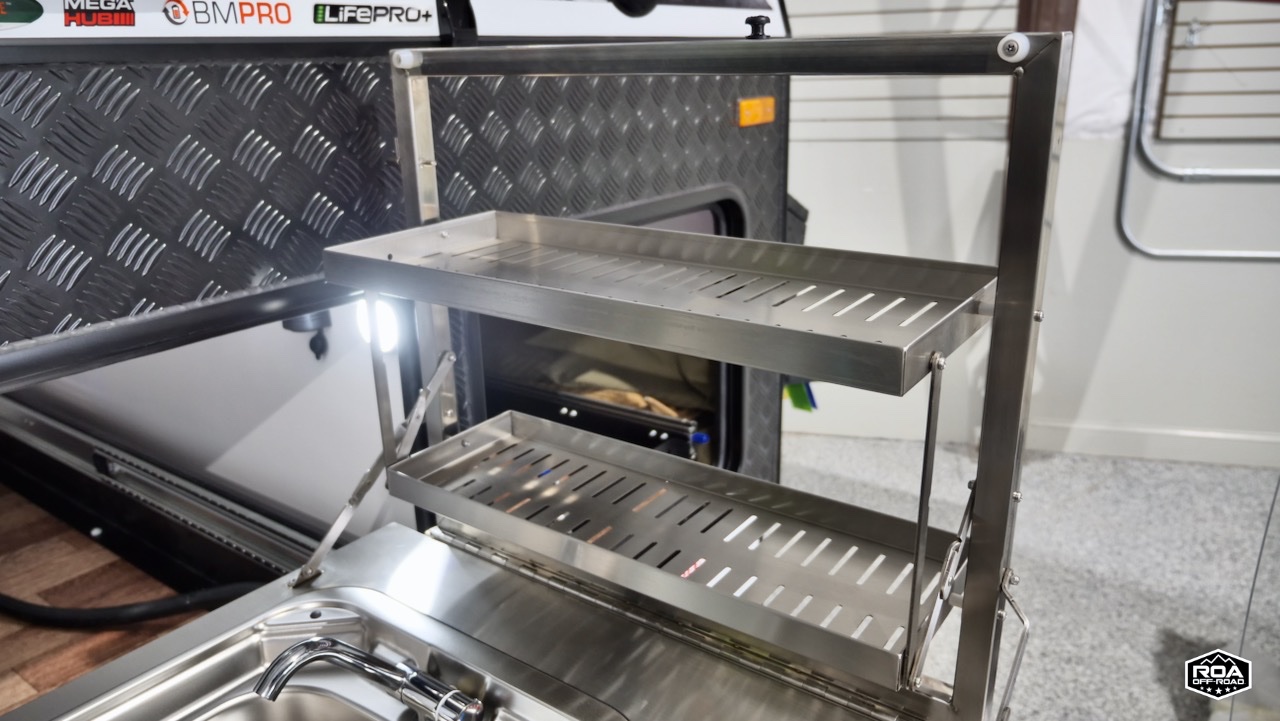

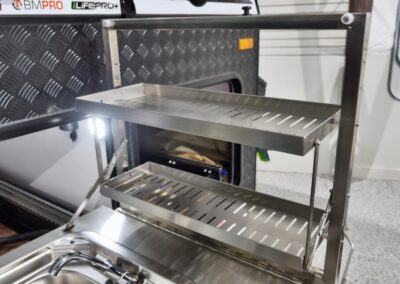

♦ External Slide out stainless steel body with propane cooktop & washboard sink with plumbed hot & cold water supply
♦ Front-mounted chequer plate toolbox with forward-facing mud flap protection
♦ Fridge Slide – 45¼” L x 21½” W x 19” H
♦ Integrated front toolbox
♦ Manually operated double pull-down entry step
Appliances
MAJOR APPLIANCES
♦ Dometic Penguin II High Efficiency Low Profile Rooftop Air Conditioner
♦ Truma Aquago Comfort Plus instant hot water system (propane-operated)

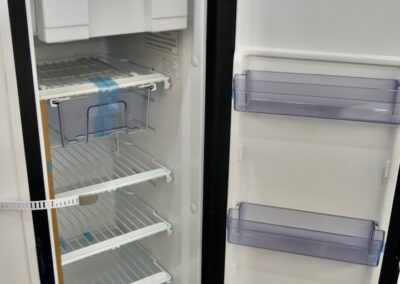

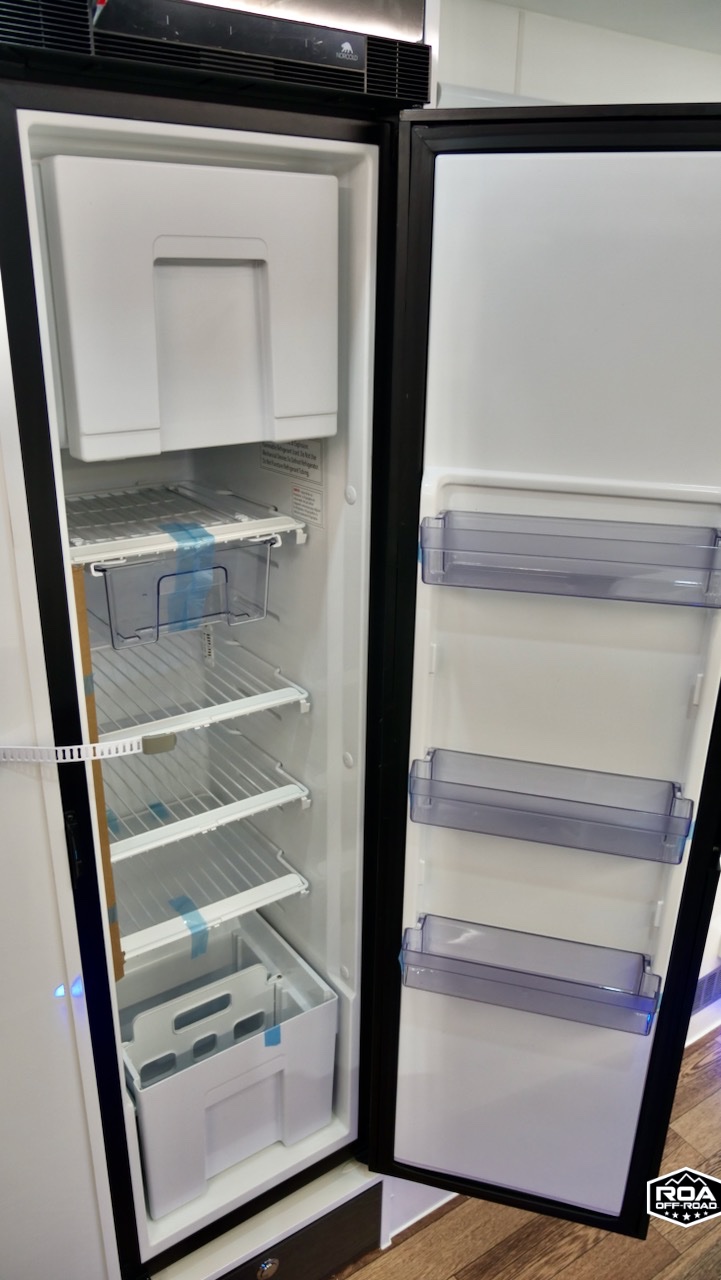

♦ Norcold N1152 5.3 cu.ft. 12/24V compressor refrigerator
♦ Dometic DFSD 12111 Furnace (propane operated)
♦ FURRION 0.9 cu.ft. 900W Microwave
♦ Theftford 3.9 Gallon water - Black tank cassette 5 Gallons
FEATURES & CHASSIS
CHASSIS
♦ 6″ x 2″ – Q345 Galvanized Steel Hot Rolled Rectangle Tube Frame
♦ Cruisemaster™ DO35 hitch
♦ ARK XO750 Jockey Wheel

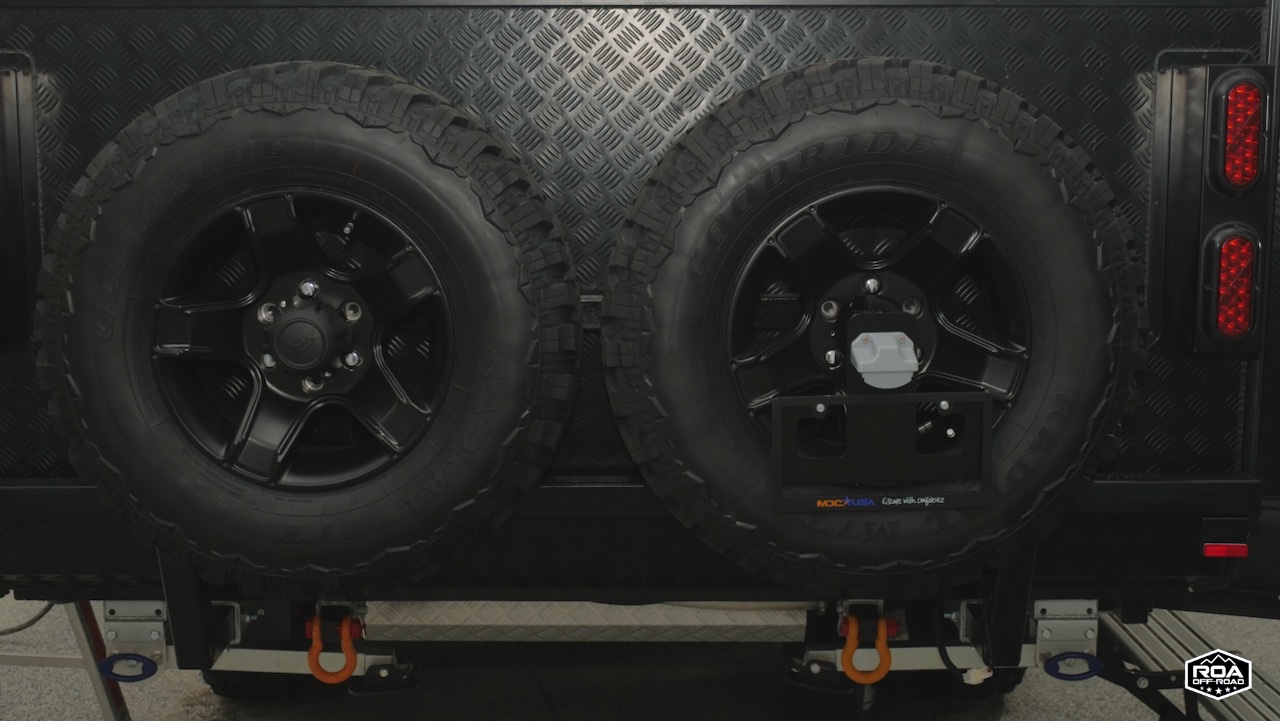

♦ 16 x 7.5 6/139.7 Aluminum alloy wheels fitted with 265/75R16 Goodride MT tires & 2 x spare wheels
♦ X-TRACK Independent coil spring suspension with 2 x TOUGH TRAX HD Shock absorbers on each side
♦ 12″ electromagnetic brakes with handbrake and drawbar mounted emergency breakaway system
♦ 4 x heavy duty lockable and adjustable drop down stabilizer legs
